B1117 Low Dropout Voltage Regulator

B1117 Description

www.DataSheet4U.com Bay Linear Inspire the Linear Power 1.0Amp Low Dropout Voltage Regulator Adjustable & Fix (0.40Volt Dropout) B1117 .
The Bay Linear B1117 is a three terminal positive NPN regulator offered as adjustable or fix voltages of 1.

B1117 Features

* Adjustable Output Down to 1.2V Output Current of 1.0Amp Low Dropout 1.0V for B1117 Dropout of 0.40 V in for B1117A Adjustable & Fix 1.5V, 1.8V, 2.5V, 2.85V, 3.0V, 3.3V, 5.0V 0.05% Load Regulation Current & Ther

B1117 Applications

* Active SCSI terminators High efficiency Linear Regulator Post regulators fro Switching Supplies Battery Charger 5V to 3.3V linear Regulators Motherboard Clock Supplies Pin Connection Ordering Information Devices B1117D-X B1117N-X B1117T-X

📥 Download Datasheet

Preview of B1117 PDF

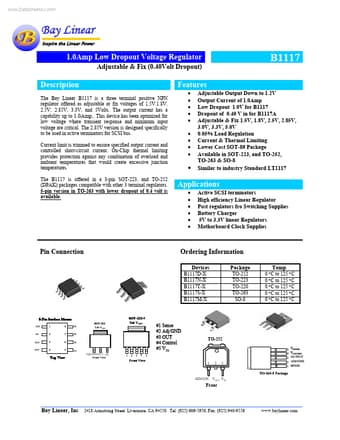

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
B1117
Manufacturer
Bay Linear
File Size
373.98 KB
Datasheet
B1117_BayLinear.pdf
Description
Low Dropout Voltage Regulator
