iT4033D - 100-ps dual independent wideband phase delay

Name: iT4033D
SKU: iT4033D-620124

📥 Download Datasheet

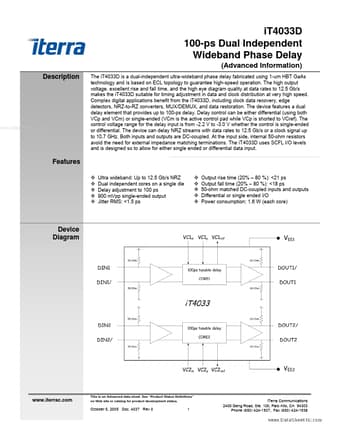

iT4033D Datasheet Preview — Preview of iT4033D PDF

Datasheet Details

Part number	iT4033D
Manufacturer	Iterra
File Size	422.63 KB
Description	100-ps dual independent wideband phase delay
Datasheet	iT4033D_Iterra.pdf

iT4033D Product details

Description

The iT4033D is a dual-independent ultra-wideband phase delay fabricated using 1-um HBT GaAs technology and is based on ECL topology to guarantee high-speed operation.

Features

a dual delay element that provides up to 100-ps delay. Delay control can be either differential (using both VCp and VCm) or single-ended (VCm is the active control pad while VCp is shorted to VCref). The control voltage range for the delay input is from -2.2 V to -3.0 V whether the control is single-ended or differential. The device can delay NRZ streams with data rates to 12.5 Gb/s or a clock signal up to 10.7 GHz. Both inputs and outputs are DC-coupled. At the input side, internal 50-ohm resis.
