MD82C55AB - CMOS Programmable Peripheral Interface

Intersil

The MD82C55AB by Intersil is a CMOS Programmable Peripheral Interface. Below is the official datasheet preview.

📥 Download Datasheet

MD82C55AB CMOS Programmable Peripheral Interface by Intersil - Datasheet Preview — Official preview page of the **MD82C55AB** CMOS Programmable Peripheral Interface datasheet (Intersil).

Datasheet Details

Part number	MD82C55AB
Manufacturer	Intersil
File Size	233.91 KB
Description	CMOS Programmable Peripheral Interface
Datasheet	MD82C55AB_IntersilCorporation.pdf

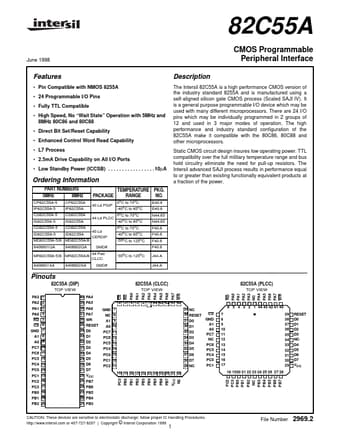

Additional preview pages of the MD82C55AB datasheet.

MD82C55AB Product details

Description

The Intersil 82C55A is a high performance CMOS version of the industry standard 8255A and is manufactured using a self-aligned silicon gate CMOS process (Scaled SAJI IV).

Features

Pin Compatible with NMOS 8255A.
24 Programmable I/O Pins.
Fully TTL Compatible.
High Speed, No “Wait State” Operation with 5MHz and 8MHz 80C86 and 80C88.
Direct Bit Set/Reset Capability.
Enhanced Control Word Read Capability.
L7 Process.
2.5mA Drive Capability on All I/O Ports.
Low Standby Power (ICCSB).
. .10µA Ordering Information PART.
