MD82C50A-5 - CMOS Asynchronous Communications Element

Intersil

The MD82C50A-5 by Intersil is a CMOS Asynchronous Communications Element. Below is the official datasheet preview.

📥 Download Datasheet

MD82C50A-5 CMOS Asynchronous Communications Element by Intersil - Datasheet Preview — Official preview page of the **MD82C50A-5** CMOS Asynchronous Communications Element datasheet (Intersil).

Datasheet Details

Part number	MD82C50A-5
Manufacturer	Intersil
File Size	101.17 KB
Description	CMOS Asynchronous Communications Element
Datasheet	MD82C50A-5_IntersilCorporation.pdf

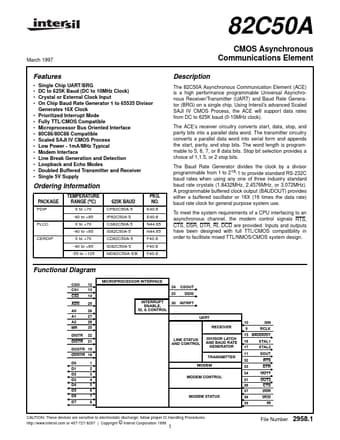

Additional preview pages of the MD82C50A-5 datasheet.

MD82C50A-5 Product details

Description

The 82C50A Asynchronous Communication Element (ACE) is a high performance programmable Universal Asynchronous Receiver/Transmitter (UART) and Baud Rate Generator (BRG) on a single chip.

Features

Single Chip UART/BRG DC to 625K Baud (DC to 10MHz Clock) Crystal or External Clock Input On Chip Baud Rate Generator 1 to 65535 Divisor Generates 16X Clock Prioritized Interrupt Mode Fully TTL/CMOS Compatible Microprocessor Bus Oriented Interface 80C86/80C88 Compatible Scaled SAJI IV CMOS Process Low Power - 1mA/MHz Typical Modem Interface Line Bre.
