MD82C50A-5B - CMOS Asynchronous Communications Element

Description

The 82C50A Asynchronous Communication Element (ACE) is a high performance programmable Universal Asynchronous Receiver/Transmitter (UART) and Baud Rate Generator (BRG) on a single chip.

Features

  • Single Chip UART/BRG DC to 625K Baud (DC to 10MHz Clock) Crystal or External Clock Input On Chip Baud Rate Generator 1 to 65535 Divisor Generates 16X Clock Prioritized Interrupt Mode Fully TTL/CMOS Compatible Microprocessor Bus Oriented Interface 80C86/80C88 Compatible Scaled SAJI IV CMOS Process Low Power - 1mA/MHz Typical Modem Interface Line Bre.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MD82C52 CMOS Serial Controller Interface Renesas
MD82C52B CMOS Serial Controller Interface Renesas
MD82C55A CMOS Programmable Peripheral Interface Harris
MD82C55A-5 CMOS Programmable Peripheral Interface Harris
MD82C55B CMOS Programmable Peripheral Interface Harris

Other Datasheets by Intersil (Renesas)

Part Number Description
MD82C50A-5 CMOS Asynchronous Communications Element
MD82C52 CMOS Serial Controller Interface
MD82C52B CMOS Serial Controller Interface
MD82C54 CMOS Programmable Interval Timer
MD82C54B CMOS Programmable Interval Timer

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

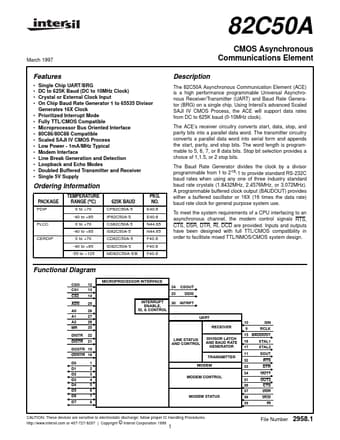

82C50A March 1997 CMOS Asynchronous Communications Element Description The 82C50A Asynchronous Communication Element (ACE) is a high performance programmable Universal Asynchronous Receiver/Transmitter (UART) and Baud Rate Generator (BRG) on a single chip. Using Intersil’s advanced Scaled SAJI IV CMOS Process, the ACE will support data rates from DC to 625K baud (0-10MHz clock). The ACE’s receiver circuitry converts start, data, stop, and parity bits into a parallel data word. The transmitter circuitry converts a parallel data word into serial form and appends the start, parity, and stop bits. The word length is programmable to 5, 6, 7, or 8 data bits. Stop bit selection provides a choice of 1,1.5, or 2 stop bits.
