MD82C54 - CMOS Programmable Interval Timer

Intersil

The MD82C54 by Intersil is a CMOS Programmable Interval Timer. Below is the official datasheet preview.

📥 Download Datasheet

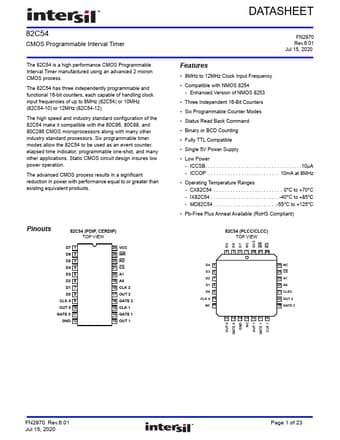

MD82C54 CMOS Programmable Interval Timer by Intersil - Datasheet Preview — Official preview page of the MD82C54 CMOS Programmable Interval Timer datasheet (Intersil).

Datasheet Details

Part number	MD82C54
Manufacturer	Intersil
File Size	605.66 KB
Description	CMOS Programmable Interval Timer
Datasheet	MD82C54_IntersilCorporation.pdf
Additional preview pages of the MD82C54 datasheet.

MD82C54 Product details

Features

8MHz to 12MHz Clock Input Frequency.
Compatible with NMOS 8254 - Enhanced Version of NMOS 8253.
Three Independent 16-Bit Counters.
Six Programmable Counter Modes.
Status Read Back Command.
Binary or BCD Counting.
Fully TTL Compatible.
Single 5V Power Supply.
Low Power - ICCSB.
. . . . .10µA - ICCOP.
. 10mA at 8MHz.
