HA-2620 Uncompensated Operational Amplifiers

HA-2620 Description

® Data Sheet HA-2620, HA-2625 January 16, 2006 FN2903.8 100MHz, High Input Impedance, Very Wideband, Uncompensated Operational Amplifiers HA-2620/.

HA-2620 Features

* Gain Bandwidth Product (AV ≥ 5)
* . . . 100MHz
* High Input Impedance
* . 300MΩ
* Low Input Bias Current
* . . . . 5nA
* Low Input Offset Current
* .

HA-2620 Applications

* The frequency response of the amplifier can be tailored to exact design requirements by means of an external bandwidth control capacitor connected from the Comp pin to GND. In addition to its application in pulse and video amplifier designs, HA-2620/2625 is particularly suited to other high perform

📥 Download Datasheet

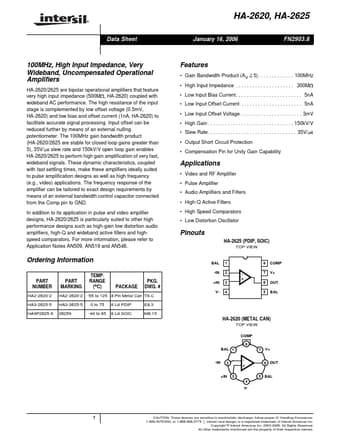

Preview of HA-2620 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HA-2620
Manufacturer
Intersil
File Size
318.53 KB
Datasheet
HA-2620-Intersil.pdf
Description
Uncompensated Operational Amplifiers
