HA-2600 High Input Impedance Operational Amplifier

HA-2600 Description

DATASHEET HA-2600 12MHz, High Input Impedance Operational Amplifier HA-2600 is an internally compensated bipolar operational amplifier that .

HA-2600 Features

* very high input impedance (500M coupled with wideband AC performance. The high resistance of the input stage is complemented by low offset voltage (0.5mV) and low bias and offset current (1nA) to facilitate accurate signal processing. Input offset can be reduced further by means of an external nu

HA-2600 Applications

* The frequency response of the amplifier can be tailored to exact design requirements by means of an external bandwidth control capacitor. In addition to its application in pulse and video amplifier designs, the HA-2600 is particularly suited to other high performance designs such as high-gain low d

📥 Download Datasheet

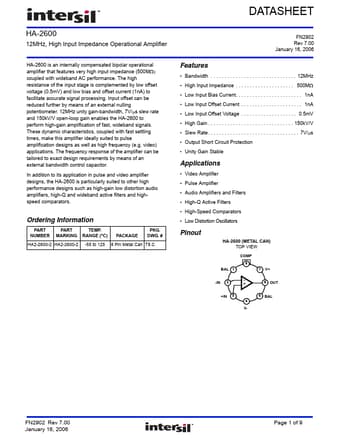

Preview of HA-2600 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HA-2600
Manufacturer
Intersil
File Size
376.81 KB
Datasheet
HA-2600-Intersil.pdf
Description
High Input Impedance Operational Amplifier
