HUF76609D3S - N-Channel MOSFET

Key Features

  • Ultra Low On-Resistance - rDS(ON) = 0.160Ω, VGS = 10V - rDS(ON) = 0.165Ω, VGS = 5V.
  • Simulation Models - Temperature Compensated PSPICE® and SABER© Electrical Models - Spice and SABER© Thermal Impedance Models - www. Intersil. com.
  • Peak Current vs Pulse Width Curve.
  • UIS Rating Curve.
  • Switching Time vs RGS Curves Ordering Information PART NUMBER.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HUF76609D3S N-Channel MOSFET Fairchild Semiconductor
HUF76609D3 N-Channel MOSFET Fairchild Semiconductor
HUF76619D3 N-Channel MOSFET Fairchild Semiconductor
HUF76619D3S N-Channel MOSFET Fairchild Semiconductor
HUF76629D3 N-Channel MOSFET Fairchild Semiconductor

Other Datasheets by Intersil (Renesas)

Part Number Description
HUF76609D3 N-Channel MOSFET
HUF76619D3 N-Channel MOSFET
HUF76619D3S N-Channel MOSFET
HUF76629D3 N-Channel MOSFET
HUF76629D3S N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

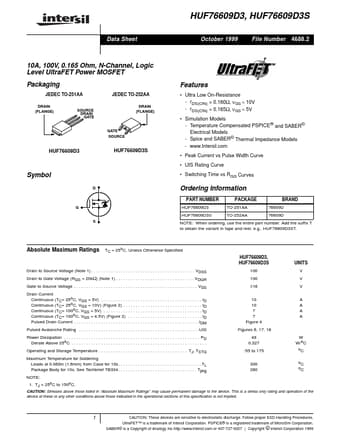

Data Sheet HUF76609D3, HUF76609D3S October 1999 File Number 4688.2 10A, 100V, 0.165 Ohm, N-Channel, Logic Level UltraFET Power MOSFET Packaging JEDEC TO-251AA JEDEC TO-252AA DRAIN (FLANGE) SOURCE DRAIN GATE DRAIN (FLANGE) GATE SOURCE HUF76609D3 HUF76609D3S Symbol D G S Features • Ultra Low On-Resistance - rDS(ON) = 0.160Ω, VGS = 10V - rDS(ON) = 0.165Ω, VGS = 5V • Simulation Models - Temperature Compensated PSPICE® and SABER© Electrical Models - Spice and SABER© Thermal Impedance Models - www.Intersil.com • Peak Current vs Pulse Width Curve • UIS Rating Curve • Switching Time vs RGS Curves Ordering Information PART NUMBER PACKAGE BRAND HUF76609D3 TO-251AA 76609D HUF76609D3S TO-252AA 76609D NOTE: When ordering, use the entire part number.
