HGTD10N40F1 10A/ 400V and 500V N-Channel IGBTs

HGTD10N40F1 Description

HGTD10N40F1, HGTD10N40F1S, HGTD10N50F1, HGTD10N50F1S March 1997 10A, 400V and 500V N-Channel IGBTs Packages HGTD10N40F1, HGTD10N50F1 JEDEC TO-251AA E.
The HGTD10N40F1, HGTD10N40F1S, HGTD10N50F1, and HGTD10N50F1S are n-channel enhancement-mode insulated gate bipolar transistors (IGBTs) designed for hi.

HGTD10N40F1 Features

* 10A, 400V and 500V
* VCE(ON) 2.5V Max.
* TFALL ≤1.4µs
* Low On-State Voltage
* Fast Switching Speeds

HGTD10N40F1 Applications

* Power Supplies
* Motor Drives

📥 Download Datasheet

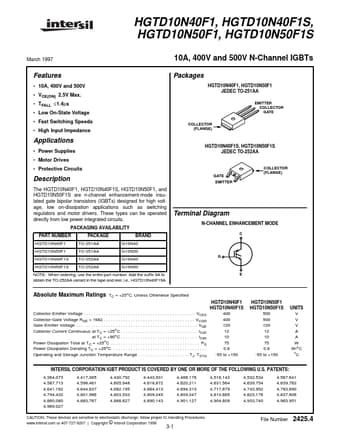

Preview of HGTD10N40F1 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HGTD10N40F1
Manufacturer
Intersil Corporation
File Size
33.07 KB
Datasheet
HGTD10N40F1_IntersilCorporation.pdf
Description
10A/ 400V and 500V N-Channel IGBTs
