CD4517BMS - CMOS Dual 64-Stage Static Shift Register

Name: CD4517BMS
SKU: CD4517BMS-109585

Intersil Corporation

📥 Download Datasheet

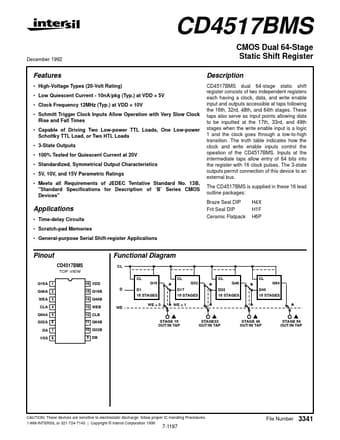

CD4517BMS Datasheet Preview — Preview of CD4517BMS PDF

Datasheet Details

Part number	CD4517BMS
Manufacturer	Intersil Corporation
File Size	116.62 KB
Description	CMOS Dual 64-Stage Static Shift Register
Datasheet	CD4517BMS_IntersilCorporation.pdf

CD4517BMS Product details

Description

CD4517BMS dual 64-stage static shift register consists of two independent registers each having a clock, data, and write enable input and outputs accessible at taps following the 16th, 32rd, 48th, and 64th stages.

Features

High-Voltage Types (20-Volt Rating).
Low Quiescent Current - 10nA/pkg (Typ. ) at VDD = 5V.
Clock Frequency 12MHz (Typ. ) at VDD = 10V.
Schmitt Trigger Clock Inputs Allow Operation with Very Slow Clock Rise and Fall Times.
Capable of Driving Two Low-power TTL Loads, One Low-power Schottky TTL Load, or Two HTL Loads.
3-State Outputs.
100% Tested for Quiescent Current at 20V.
Standardized, Symmetrical Output Characteristics.
