CD4512 - 8-Channel Buffered Data Selector

National Semiconductor

📥 Download Datasheet

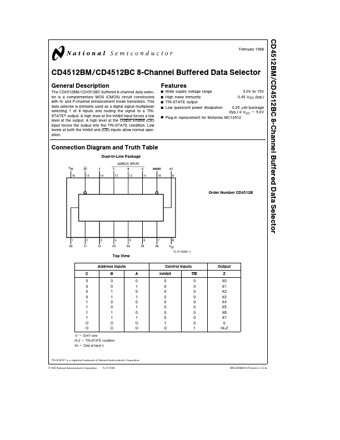

CD4512 Datasheet Preview — Preview of CD4512 PDF

Datasheet Details

Part number	CD4512
Manufacturer	National Semiconductor
File Size	142.70 KB
Description	8-Channel Buffered Data Selector
Datasheet	CD4512_NationalSemiconductor.pdf

CD4512 Product details

Description

The CD4512BM CD4512BC buffered 8-channel data selector is a complementary MOS (CMOS) circuit constructed with N- and P-channel enhancement mode transistors This data selector is primarily used as a digital signal multiplexer selecting 1 of 8 inputs and routing the signal to a TRISTATE output A high level at the Inhibit input forces a low level at the output A high level at the Output Enable (OE) input forces the output into the TRI-STATE condition Low levels at both the Inhibit and (OE) inputs a

Features

Y Y Y Y Wide supply voltage range High noise immunity TRI-STATE output Low quiescent power dissipation 3 0V to 15V 0 45 VDD (typ ) Y 0 25 mW package (typ ) VCC e 5 0V Plug-in replacement for Motorola MC14512 Connection Diagram and Truth Table Dual-In-Line Package Order Number CD4512B TL F 5993.
1 Top View Address Inputs C 0 0 0 0 1 1 1 1 j j j e Don’t care Control Inputs A 0 1 0 1 0 1 0 1 j j Output OE 0 0 0 0 0 0 0 0 0 1 Z X0 X1 X2 X3 X4 X5 X6 X7 0 Hi-Z B 0 0 1 1 0 0 1 1 j j.
