CD4510BMS - CMOS Presettable Up/Down Counters

Intersil Corporation

📥 Download Datasheet

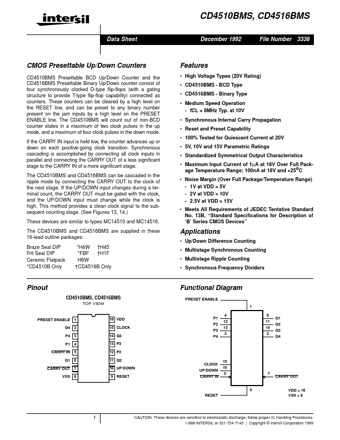

CD4510BMS Datasheet Preview — Preview of CD4510BMS PDF

Datasheet Details

Part number	CD4510BMS
Manufacturer	Intersil Corporation
File Size	139.51 KB
Description	CMOS Presettable Up/Down Counters
Datasheet	CD4510BMS_IntersilCorporation.pdf

CD4510BMS Product details

Description

of ‘B’ Series CMOS Devices” Applications Up/Down Difference Counting Multistage Synchronous Counting Multistage Ripple Counting Synchronous Frequency Dividers Pinout CD4510BMS, CD4516BMS TOP VIEW Functional Diagram PRESET ENABLE 1 P1 P2 P3 P4 4 12 13 3 6 11 14 2 Q1 Q2 Q3 Q4 PRESET ENABLE Q4 P4 P1 CARRY IN Q1 CARRY OUT VSS 1 2 3 4 5 6 7 8 16 VDD 15 CLOCK 14 Q3 13 P3 12 P2 11 Q2 CLOCK 10 UP/DOWN 9 RESET UP/DOWN CARRY IN 15 10 5 7 CARRY OUT 9 RESET

Features

High Voltage Types (20V Rating).
CD4510BMS - BCD Type.
CD4516BMS - Binary Type.
Medium Speed Operation - fCL = 8MHz Typ. at 10V.
Synchronous Internal Carry Propagation.
Reset and Preset Capability.
100% Tested for Quiescent Current at 20V.
5V, 10V and 15V Parametric Ratings.
Standardized Symmetrical Output Characteristics.
Maximum Input Current of 1µA at 18V Over Full Package Temperature Range; 100nA at 18.
