CD4041UBMS - CMOS Quad True/Complement Buffer

Intersil Corporation

📥 Download Datasheet

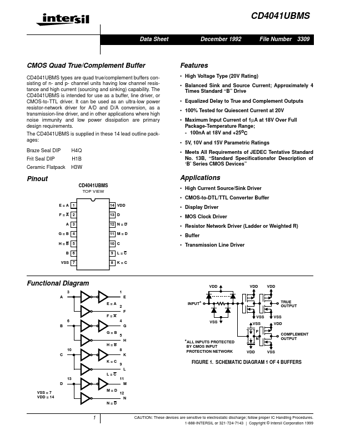

CD4041UBMS Datasheet Preview — Preview of CD4041UBMS PDF

Datasheet Details

Part number	CD4041UBMS
Manufacturer	Intersil Corporation
File Size	105.80 KB
Description	CMOS Quad True/Complement Buffer
Datasheet	CD4041UBMS_IntersilCorporation.pdf

CD4041UBMS Product details

Description

of ‘B’ Series CMOS Devices” Pinout CD4041UBMS TOP VIEW E=A 1 F=A 2 A 3 G=B 4 H=B 5 B 6 VSS 7 14 VDD 13 D 12 N = D 11 M = D 10 C 9 L=C 8 K=C Applications High Current Source/Sink Driver CMOS-to-DTL/TTL Converter Buffer Display Driver MOS Clock Driver Resistor Network Driver (Ladder or Weighted R) Buffer Transmission Line Driver Functional Diagram 3 A E=A F=A 6 B G=B H=B 10 C K=C L=C 13 D VSS = 7 VDD = 14 M=D N=D 11 M 12 N 9

Features

High Voltage Type (20V Rating).
Balanced Sink and Source Current; Approximately 4 Times Standard “B” Drive.
Equalized Delay to True and Complement Outputs.
100% Tested for Quiescent Current at 20V.
Maximum Input Current of 1µA at 18V Over Full Package-Temperature Range; - 100nA at 18V and +25oC.
5V, 10V and 15V Parametric Ratings.
Meets All Requirements of JEDEC Tentative Standard No. 13B, “Standard Speciﬁcationsfor.
