CD4044BMS - CMOS Quad 3 State R/S Latche

Intersil Corporation

📥 Download Datasheet

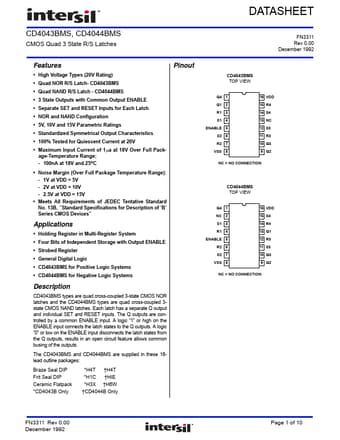

CD4044BMS Datasheet Preview — Preview of CD4044BMS PDF

Datasheet Details

Part number	CD4044BMS
Manufacturer	Intersil Corporation
File Size	391.08 KB
Description	CMOS Quad 3 State R/S Latche
Datasheet	CD4044BMS_IntersilCorporation.pdf

CD4044BMS Product details

Description

of ‘B’ Series CMOS Devices” Pinout Applications Holding Register in Multi-Register System Four Bits of Independent Storage with Output ENABLE Strobed Register General Digital Logic CD4043BMS for Positive Logic Systems CD4044BMS for Negative Logic Systems Description CD4043BMS types are quad cross-coupled 3-state CMOS NOR latches and the CD4044BMS types are quad cross-coupled 3state CMOS NAND latches.Each latch has a separate Q outp

Features

High Voltage Types (20V Rating).
Quad NOR R/S Latch- CD4043BMS.
Quad NAND R/S Latch - CD4044BMS.
3 State Outputs with Common Output ENABLE.
Separate SET and RESET Inputs for Each Latch.
NOR and NAND Configuration.
5V, 10V and 15V Parametric Ratings.
Standardized Symmetrical Output Characteristics.
100% Tested for Quiescent Current at 20V.
Maximum Input Current of 1a at 18V Over Full Package-Temperature Ra.
