CD4041UBC - Quad True/Complement Buffer

National Semiconductor

📥 Download Datasheet

CD4041UBC Datasheet Preview — Preview of CD4041UBC PDF

Datasheet Details

Part number	CD4041UBC
Manufacturer	National Semiconductor
File Size	118.74 KB
Description	Quad True/Complement Buffer
Datasheet	CD4041UBC_NationalSemiconductor.pdf

CD4041UBC Product details

Description

The CD4041UB CD4041UBC is a quad true complement buffer consisting of N- and P-channel enhancement mode transistors having low-channel resistance and high current (sourcing and sinking) capability The CD4041 is intended for use as a buffer line driver or CMOS-to-TTL driver All inputs are protected from static discharge by diode clamps to VDD and VSS

Features

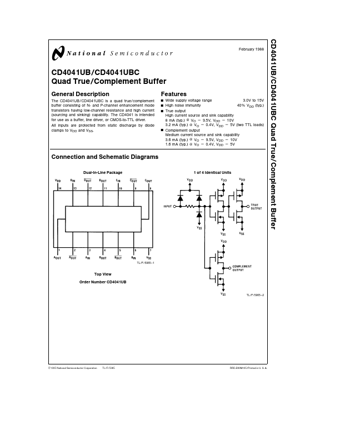

Y Y Y Y Wide supply voltage range 3 0V to 15V High noise immunity 40% VDD (typ ) True output High current source and sink capability 8 mA (typ ) VO e 9 5V VDD e 10V 3 2 mA (typ ) VO e 0 4V VDD e 5V (two TTL loads) Complement output Medium current source and sink capability 3 6 mA (typ ) VO e 9 5V VDD e 10V 1 6 mA (typ ) VO e 0 4V VDD e 5V Connection and Schematic Diagrams Dual-In-Line Package 1 of 4 Identical Units TL F 5965.
1 Top View Order Number CD4041UB TL F 5965.
2.
