SD203R, SD203N FAST RECOVERY DIODES Stud Version

SD203R Description

Previous Datasheet Index Next Data Sheet Bulletin I2064/A SD203N/R SERIES FAST RECOVERY DIODES .

SD203R Features

* High power FAST recovery diode series 1.0 to 2.0 µs recovery time High voltage ratings up to 2500V High current capability Optimized turn on and turn off characteristics Low forward recovery Fast and soft reverse recovery Compression bonded encapsulation Stud version JEDEC DO-205AB (DO-9) Maximum ju

SD203R Applications

* Snubber diode for GTO High voltage free-wheeling diode Fast recovery rectifier applications Major Ratings and Characteristics Parameters IF(AV) @ TC IF(RMS) IFSM @ 50Hz @ 60Hz I 2t @ 50Hz @ 60Hz V RRM range trr range @ TJ TJ SD203N/R 200 85 314 4990 5230 125 114 400 to 2500 1.0 to 2.0 25 - 40 to 1

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SD203R, SD203N. Please refer to the document for exact specifications by model.

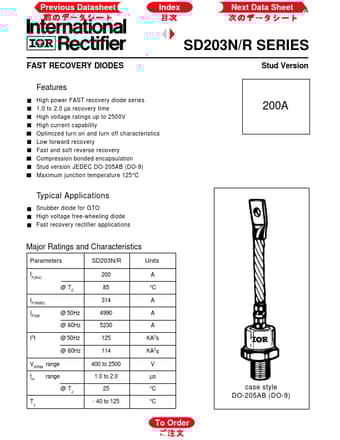

datasheet Preview Page 2 datasheet Preview Page 3
