SD203N FAST RECOVERY DIODES Stud Version

SD203N Description

Previous Datasheet Index Next Data Sheet Bulletin I2064/A SD203N/R SERIES FAST RECOVERY DIODES .

SD203N Features

* High power FAST recovery diode series 1.0 to 2.0 µs recovery time High voltage ratings up to 2500V High current capability Optimized turn on and turn off characteristics Low forward recovery Fast and soft reverse recovery Compression bonded encapsulation Stud version JEDEC DO-205AB (DO-9) Maximum ju

SD203N Applications

* Snubber diode for GTO High voltage free-wheeling diode Fast recovery rectifier applications Major Ratings and Characteristics Parameters IF(AV) @ TC IF(RMS) IFSM @ 50Hz @ 60Hz I 2t @ 50Hz @ 60Hz V RRM range trr range @ TJ TJ SD203N/R 200 85 314 4990 5230 125 114 400 to 2500 1.0 to 2.0 25 - 40 to 1

📥 Download Datasheet

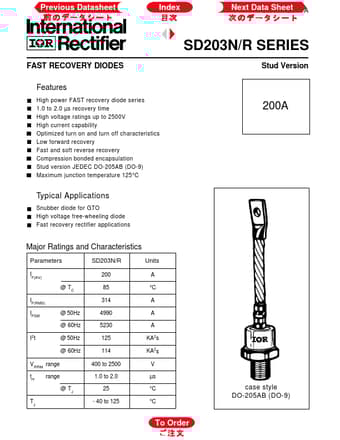

Preview of SD203N PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SD203N
Manufacturer
International Rectifier
File Size
518.77 KB
Datasheet
SD203N_InternationalRectifier.pdf
Description
FAST RECOVERY DIODES Stud Version
