SD20 Small Compact Size DC-DC Converter

SD20 Description

SD20 MAX.Power 20W Isolated DC-DC Converter SDS20 Series Small Compact Size DC-DC Converter Environment * Operating Temperature : -40°C ~ 85.

SD20 Features

* Small Compact Size
* High Efficiency
* Isolated Input - Output
* Wide operating temperature range (-40°C to 85°C)
* Long Life Design (Employ only Ceramic Capacitor)
* Built-in over current protection circuit
* Wide 2 :1 input range

SD20 Applications

* Data and telecommunication
* Datacommunication electronic equipments
* FA control General Specifications Input Output Protection Circuit Electrically Isolated Input Voltage Range Efficiency Output Voltage Line Regulation Load Regulation Cross Regulation (Dual O

📥 Download Datasheet

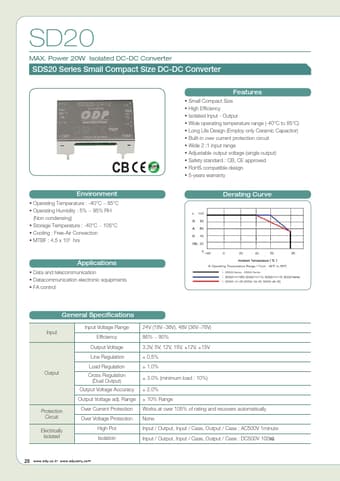

SD20 Datasheet Preview — Preview of SD20 PDF

Datasheet Details

Part number: SD20
Manufacturer: ODP
File Size: 224.31 KB
Datasheet: SD20-ODP.pdf
Description: Small Compact Size DC-DC Converter
