IRK56, IRK41 - (IRK41 / IRK56) THYRISTOR/ DIODE and THYRISTOR/ THYRISTOR

International Rectifier

📥 Download Datasheet

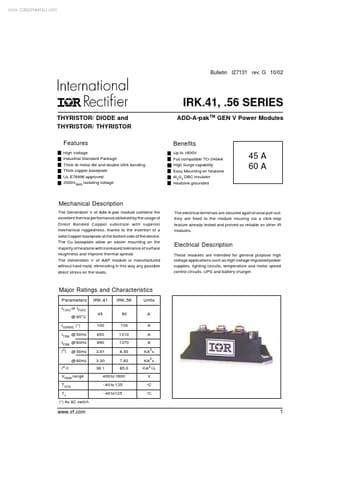

IRK56 Datasheet Preview — This datasheet PDF includes multiple part numbers: IRK56, IRK41. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	IRK56, IRK41
Manufacturer	International Rectifier
File Size	260.02 KB
Description	(IRK41 / IRK56) THYRISTOR/ DIODE and THYRISTOR/ THYRISTOR
Datasheet	IRK41_InternationalRectifier.pdf
Note	This datasheet PDF includes multiple part numbers: IRK56, IRK41. Please refer to the document for exact specifications by model.

IRK56 Product details

Description

The Generation V of Add-A-pak module combine the excellent thermal performance obtained by the usage of Direct Bonded Copper substrate with superior mechanical ruggedness, thanks to the insertion of a solid Copper baseplate at the bottom side of the device.

Features

High Voltage Industrial Standard Package Thick Al metal die and double stick bonding Thick copper baseplate UL E78996 approved 3500VRMS isolating voltage ADD-A-pakTM GEN V Power Modules Benefits Up to 1600V Full compatible TO-240AA High Surge capability Easy Mounting on heatsink Al203 DBC insulator Heatsink grounded 45 A 60 A Mechanical.
