IRK.162, IRK-136 (IRK.136/.142/.162) THYRISTOR/ DIODE and THYRISTOR/ THYRISTOR

IRK.162 Description

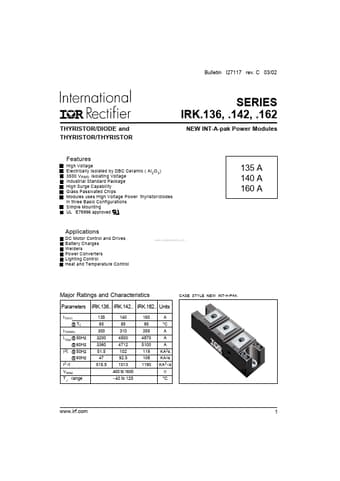

Bulletin I27117 rev.C 03/02 SERIES IRK.136, .142, .162 THYRISTOR/DIODE and THYRISTOR/THYRISTOR .

IRK.162 Features

* High Voltage Electrically Isolated by DBC Ceramic ( Al 2 O 3 ) 3500 V RMS Isolating Voltage Industrial Standard Package High Surge Capability Glass Passivated Chips Modules uses High Voltage Power thyristor/diodes in three Basic Configurations Simple Mounting UL E78996 approved NEW INT-A-pak Power

IRK.162 Applications

* DC Motor Control and Drives Battery Charges Welders Power Converters Lighting Control Heat and Temperature Control www. DataSheet4U. com Major Ratings and Characteristics Parameters IT(AV) @ TC IT(RMS) ITSM @ 50Hz @ 60Hz I2t @ 50Hz @ 60Hz I2√t VRRM TJ range CASE STYLE NEW INT-A-PAK IRK.136.. IRK.14

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IRK.162, IRK-136. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRK.162, IRK-136
Manufacturer
International Rectifier
File Size
409.16 KB
Datasheet
IRK-136_InternationalRectifier.pdf
Description
(IRK.136/.142/.162) THYRISTOR/ DIODE and THYRISTOR/ THYRISTOR
Note
This datasheet PDF includes multiple part numbers: IRK.162, IRK-136.
Please refer to the document for exact specifications by model.
