IRK.142, IRK-136 (IRK.136/.142/.162) THYRISTOR/ DIODE and THYRISTOR/ THYRISTOR

International Rectifier

Description

Bulletin I27117 rev.C 03/02 SERIES IRK.136, .142, .162 THYRISTOR/DIODE and THYRISTOR/THYRISTOR .

📥 Download Datasheet

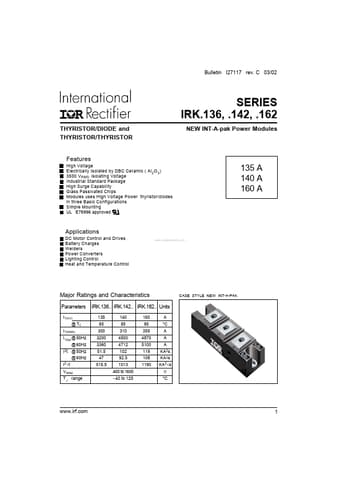

IRK.142 Datasheet Preview — This datasheet PDF includes multiple part numbers: IRK.142, IRK-136. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: IRK.142, IRK-136
Manufacturer: International Rectifier
File Size: 409.16 KB
Datasheet: IRK-136_InternationalRectifier.pdf
Description: (IRK.136/.142/.162) THYRISTOR/ DIODE and THYRISTOR/ THYRISTOR
Note: This datasheet PDF includes multiple part numbers: IRK.142, IRK-136.
Please refer to the document for exact specifications by model.

Features

* High Voltage Electrically Isolated by DBC Ceramic ( Al 2 O 3 ) 3500 V RMS Isolating Voltage Industrial Standard Package High Surge Capability Glass Passivated Chips Modules uses High Voltage Power thyristor/diodes in three Basic Configurations Simple Mounting UL E78996 approved NEW INT-A-pak Power

Applications

* DC Motor Control and Drives Battery Charges Welders Power Converters Lighting Control Heat and Temperature Control www. DataSheet4U. com Major Ratings and Characteristics Parameters IT(AV) @ TC IT(RMS) ITSM @ 50Hz @ 60Hz I2t @ 50Hz @ 60Hz I2√t VRRM TJ range CASE STYLE NEW INT-A-PAK IRK.136.. IRK.14
