IRG7PH46UD-EP - INSULATED GATE BIPOLAR TRANSISTOR

International Rectifier

📥 Download Datasheet

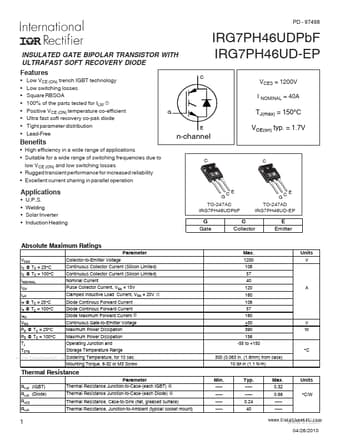

IRG7PH46UD-EP Datasheet Preview — Preview of IRG7PH46UD-EP PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IRG7PH46UD-EP
Manufacturer	International Rectifier
File Size	469.40 KB
Description	INSULATED GATE BIPOLAR TRANSISTOR
Datasheet	IRG7PH46UD-EP_InternationalRectifier.pdf

IRG7PH46UD-EP Product details

Features

Low VCE (ON) trench IGBT technology Low switching losses Square RBSOA 100% of the parts tested for ILM Positive VCE (ON) temperature co-efficient Ultra fast soft recovery co-pak diode Tight parameter distribution Lead-Free IRG7PH46UDPbF IRG7PH46UD-EP C VCES = 1200V I.
