IRFZ24NS, IRFZ24NL Power MOSFET

IRFZ24NS Description

www.DataSheet4U.com PD - 9.1355B IRFZ24NS/L HEXFET® Power MOSFET l l l l l l Advanced Process Technology Surface Mount (IRFZ24NS) Low-profile throu.
Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area.

IRFZ24NS Features

* 10.54 ( .415) 10.29 ( .405) 1.40 (.055) MAX. -A2 4.69 (.185) 4.20 (.165) -B 1.32 (.052) 1.22 (.048) 10.16 (.400) RE F . 6.47 (.255) 6.18 (.243) 15.49 (.610) 14.73 (.580) 5.28 (.208) 4.78 (.188) 2.79 (.110) 2.29 (.090) 2.61 (.103) 2.32 (.091) 8.89 (.350) RE F. 1.78 (.070) 1.27 (.050) 1 3 3X

IRFZ24NS Applications

* The D2Pak is a surface mount power package capable of accommodating die sizes up to HEX-4. It provides the highest power capability and the lowest possible onresistance in any existing surface mount package. The D2 Pak is suitable for high current applications because of its low internal connection

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IRFZ24NS, IRFZ24NL. Please refer to the document for exact specifications by model.

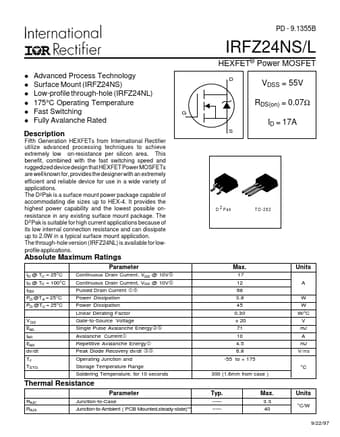

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRFZ24NS, IRFZ24NL
Manufacturer
International Rectifier
File Size
288.59 KB
Datasheet
IRFZ24NL_InternationalRectifier.pdf
Description
Power MOSFET
Note
This datasheet PDF includes multiple part numbers: IRFZ24NS, IRFZ24NL.
Please refer to the document for exact specifications by model.
