IRFU5305, IRFR5305 HEXFET Power MOSFET

IRFU5305 Description

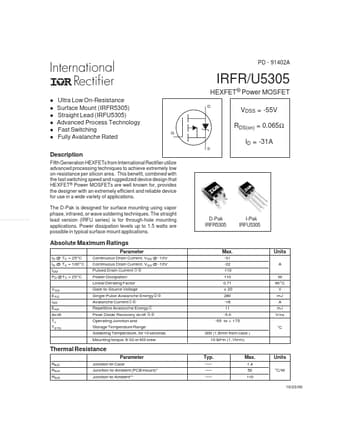

PD - 91402A IRFR/U5305 HEXFET® Power MOSFET l l l l l l Ultra Low On-Resistance Surface Mount (IRFR5305) Straight Lead (IRFU5305) Advanced Process T.
Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area.

IRFU5305 Features

* ww. irf. com 7 IRFR/U5305 D-Pak (TO-252AA) Package Outline Dimensions are shown in millimeters (inches) 6 .7 3 (.2 6 5 ) 6 .3 5 (.2 5 0 ) -A 5 .4 6 (.2 1 5 ) 5 .2 1 (.2 0 5 ) 4 1 .2 7 (.0 5 0 ) 0 .8 8 (.0 3 5 ) 2 .3 8 (.0 9 4 ) 2 .1 9 (.0 8 6 ) 1 .1 4 (.0 4 5 ) 0 .8 9 (.0 3 5 ) 0 .5 8 (.0 2 3 ) 0

IRFU5305 Applications

* The D-Pak is designed for surface mounting using vapor phase, infrared, or wave soldering techniques. The straight lead version (IRFU series) is for through-hole mounting applications. Power dissipation levels up to 1.5 watts are possible in typical surface mount applications. www. DataSheet4U. com

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IRFU5305, IRFR5305. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRFU5305, IRFR5305
Manufacturer
International Rectifier
File Size
182.84 KB
Datasheet
IRFR5305_InternationalRectifier.pdf
Description
HEXFET Power MOSFET
Note
This datasheet PDF includes multiple part numbers: IRFU5305, IRFR5305.
Please refer to the document for exact specifications by model.
