IRFU024, IRFR024 Power MOSFET

IRFU024 Description

www.vishay.com IRFR024, IRFU024, SiHFR024, SiHFU024 Vishay Siliconix Power MOSFET DPAK (TO-252) D IPAK (TO-251) D GS GD S D G S N-Channel MOSFE.
Third generation power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistan.

IRFU024 Features

* Dynamic dV/dt rating
* Surface-mount (IRFR024, SiHFR024)
* Straight lead (IRFU024, SiHFU024)
* Available in tape and reel
* Fast switching
* Ease of paralleling Available
* Simple drive requirements
* Material categorization:

IRFU024 Applications

* Power dissipation levels up to 1.5 W are possible in typical surface mount applications. ORDERING INFORMATION PACKAGE DPAK (TO-252) Lead (Pb)-free and halogen-free SiHFR024-GE3 Lead (Pb)-free IRFR024PbF DPAK (TO-252) SiHFR024TR-GE3 IRFR024TRPbFa Notes a. See device orientation b. “-BE3” de

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IRFU024, IRFR024. Please refer to the document for exact specifications by model.

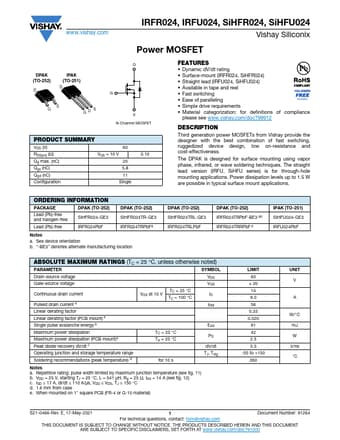

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRFU024, IRFR024
Manufacturer
Vishay ↗ Siliconix
File Size
1.03 MB
Datasheet
IRFR024_VishaySiliconix.pdf
Description
Power MOSFET
Note
This datasheet PDF includes multiple part numbers: IRFU024, IRFR024.
Please refer to the document for exact specifications by model.
