IRF7811 - HEXFET

Download the IRF7811 datasheet PDF. This datasheet also covers the IRF7809 variant, as both devices belong to the same hexfet family and are provided as variant models within a single manufacturer datasheet.

Description

balance of on-resistance and gate charge.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IRF7809-InternationalRectifier.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
IRF7805PBF Power MOSFET Infineon
IRF7805TRPbF-1 Power MOSFET Infineon
IRF7832 N-Channel 30-V (D-S) MOSFET Freescale
IRF7855 N-Channel MOSFET Kexin
IRF710 N-Channel Power MOSFET Intersil Corporation

Other Datasheets by International Rectifier (now Infineon)

Part Number Description
IRF7811A N-Channel Power MOSFET
IRF7811APBF HEXFET Power MOSFET
IRF7811AV N-Channel Application-Specific MOSFET
IRF7811AVPbF N-Channel Application-Specific MOSFETs
IRF7811AVPBF-1 Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

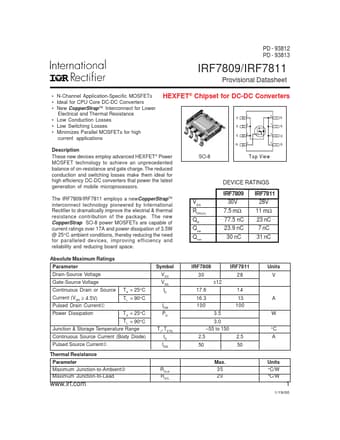

PD - 93812 PD - 93813 IIRRFF77880099//IIRRFF77881111 Provisional Datasheet • N-Channel Application-Specific MOSFETs HEXFET® Chipset for DC-DC Converters • Ideal for CPU Core DC-DC Converters • New CopperStrapTM Interconnect for Lower Electrical and Thermal Resistance • Low Conduction Losses S1 AA 8D • Low Switching Losses S2 7D • Minimizes Parallel MOSFETs for high current applications S3 6D G4 5D Description These new devices employ advanced HEXFET® Power SO-8 Top View MOSFET technology to achieve an unprecedented balance of on-resistance and gate charge. The reduced conduction and switching losses make them ideal for high efficiency DC-DC converters that power the latest generation of mobile microprocessors.
