IR3507 - PHASE

Name: IR3507
SKU: IR3507-663557

International Rectifier

📥 Download Datasheet

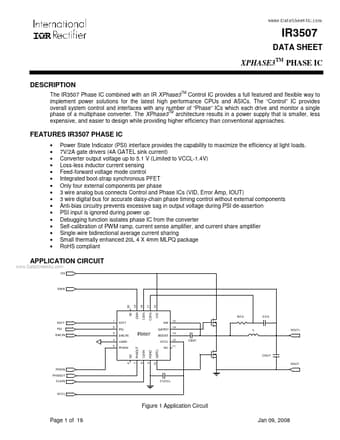

IR3507 Datasheet Preview — Preview of IR3507 PDF

Datasheet Details

Part number	IR3507
Manufacturer	International Rectifier
File Size	401.87 KB
Description	PHASE
Datasheet	IR3507_InternationalRectifier.pdf

IR3507 Product details

Description

The IR3507 Phase IC combined with an IR XPhase3 Control IC provides a full featured and flexible way to implement power solutions for the latest high performance CPUs and ASICs.

Features

IR3507 PHASE IC.
Power State Indicator (PSI) interface provides the capability to maximize the efficiency at light loads. 7V/2A gate drivers (4A GATEL sink current) Converter output voltage up to 5.1 V (Limited to VCCL-1.4V) Loss-less inductor current sensing Feed-forward voltage mode control Integrated boot-strap synchronous PFET Only fo.
