IR35215 - dual output digital multi-phase controller

Name: IR35215
SKU: IR35215-1576115

Infineon

📥 Download Datasheet

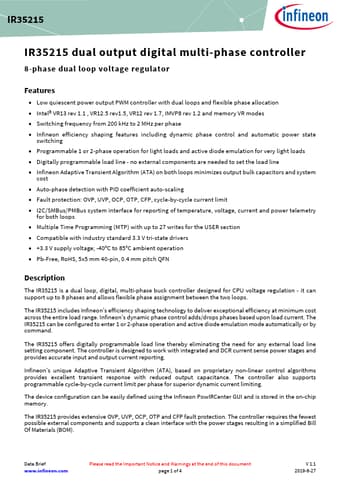

IR35215 Datasheet Preview — Preview of IR35215 PDF

Datasheet Details

Part number	IR35215
Manufacturer	Infineon
File Size	826.00 KB
Description	dual output digital multi-phase controller
Datasheet	IR35215-Infineon.pdf

IR35215 Product details

Description

The IR35215 is a dual loop, digital, multi-phase buck controller designed for CPU voltage regulation - it can support up to 8 phases and allows flexible phase assignment between the two loops.

Features

Low quiescent power output PWM controller with dual loops and flexible phase allocation.
Intel® VR13 rev 1.1 , VR12.5 rev1.5, VR12 rev 1.7, IMVP8 rev 1.2 and memory VR modes.
Switching frequency from 200 kHz to 2 MHz per phase.
Infineon efficiency shaping features including dynamic phase control and automatic power state switching.
Programmable 1 or 2-phase operation for light loads and active diode emulation for very light loads.
Digitally programmable load line -.
