IR3505 - PHASE

Name: IR3505
SKU: IR3505-663558

International Rectifier

📥 Download Datasheet

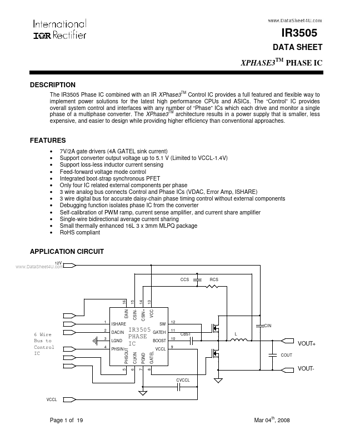

IR3505 Datasheet Preview — Preview of IR3505 PDF

Datasheet Details

Part number	IR3505
Manufacturer	International Rectifier
File Size	339.14 KB
Description	PHASE
Datasheet	IR3505_InternationalRectifier.pdf

IR3505 Product details

Description

The IR3505 Phase IC combined with an IR XPhase3 Control IC provides a full featured and flexible way to implement power solutions for the latest high performance CPUs and ASICs.

Features

7V/2A gate drivers (4A GATEL sink current) Support converter output voltage up to 5.1 V (Limited to VCCL-1.4V) Support loss-less inductor current sensing Feed-forward voltage mode control Integrated boot-strap synchronous PFET Only four IC related external components per phase 3 wire analog bus connects Control and Phase ICs (VDAC, Error Amp, ISHARE) 3 wire digital bu.
