IR3103 - Half-Bridge FredFET and Integrated Driver

International Rectifier

📥 Download Datasheet

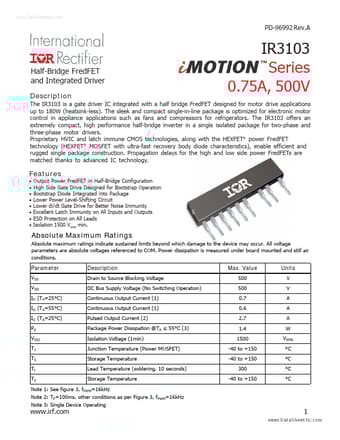

IR3103 Datasheet Preview — Preview of IR3103 PDF

Datasheet Details

Part number	IR3103
Manufacturer	International Rectifier
File Size	236.55 KB
Description	Half-Bridge FredFET and Integrated Driver
Datasheet	IR3103_InternationalRectifier.pdf

IR3103 Product details

Description

IR3103 Series 0.75A, 500V The IR3103 is a gate driver IC integrated with a half bridge FredFET designed for motor drive applications up to 180W (heatsink-less).The sleek and compact single-in-line package is optimized for electronic motor control in appliance applications such as fans and compressors for refrigerators.The IR3103 offers an extremely compact, high performance half-bridge inverter in a single isolated package for two-phase and three-phase motor drivers.Proprietary HVIC and lat

Features

Output Power FredFET in Half-Bridge Configuration.
High Side Gate Drive Designed for Bootstrap Operation.
Bootstrap Diode Integrated into Package.
Lower Power Level-Shifting Circuit.
Lower di/dt Gate Drive for Better Noise Immunity.
Excellent Latch Immunity on All Inputs and Outputs.
ESD Protection on All Leads.
Isolation 1500 VRMS min. Absolute Maximum Ratings Absolute maximum ratings indicate sustained limits beyond whic.
