IR3101 - Half-Bridge FredFet and Integrated Driver

International Rectifier

📥 Download Datasheet

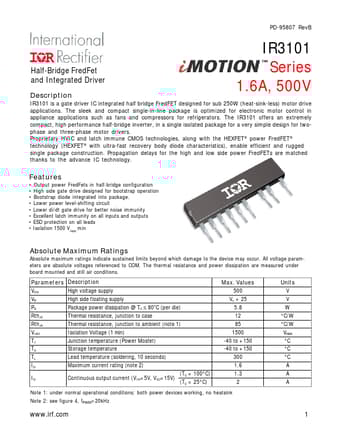

IR3101 Datasheet Preview — Preview of IR3101 PDF

Datasheet Details

Part number	IR3101
Manufacturer	International Rectifier
File Size	268.30 KB
Description	Half-Bridge FredFet and Integrated Driver
Datasheet	IR3101_InternationalRectifier.pdf

IR3101 Product details

Description

IR3101 is a gate driver IC integrated half bridge FredFET designed for sub 250W (heat-sink-less) motor drive applications.The sleek and compact single-in-line package is optimized for electronic motor control in appliance applications such as fans and compressors for refrigerators.The IR3101 offers an extremely compact, high performance half-bridge inverter, in a single isolated package for a very simple design for two- phase and three-phase motor drivers.Proprietary HVIC and latch immu

Features

Output power FredFets in half-bridge configuration.
High side gate drive designed for bootstrap operation.
Bootstrap diode integrated into package.
Lower power level-shifting circuit.
Lower di/dt gate drive for better noise immunity.
Excellent latch immunity on all inputs and outputs.
ESD protection on all leads.
Isolation 1500 VRMS min Absolute Maximum Ratings Absolute maximum ratings indicate sustained limits beyond whi.
