IR3081A - XPHASETM VR 10 CONTROL IC

Description

The IR3081A Control IC combined with an IR XPhaseTM Phase IC provides a full featured and flexible way to implement a complete VR 10 power solution.

Features

  • 6 bit VR 10 compatible VID with 0.5% overall system accuracy 1 to X phases operation with matching phase ICs Programmable Dynamic VID Slew Rate No Discharge of output capacitors during Dynamic VID step-down (can be disabled) +/-300mV Differential Remote Sense Programmable 150kHz to 1MHz oscillator Programmable VID Offset and Load Line output impedance Progra.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IR300N-D0 Infrared Emitter CT Micro
IR304C-AXXXX Infrared LED Lamp Xinqiao Optoelectronic
IR311 REFLECTIVE NON FOCUSING SENSOR Fairchild Semiconductor
IR313 4.7mm Round Non-flange Infrared LED Everlight Electronics
IR31BC Uncertified Infrared Single Gas Sensor SGX

Other Datasheets by International Rectifier (now Infineon)

Part Number Description
IR3081 XPHASE VR 10.0 CONTROL IC
IR3080 XPHASE VRD10 CONTROLLER
IR3080PBF XPHASETM VRD10 CONTROL IC
IR3082 XPHASE AMD OPTERON/ATHLON 64 CONTROL IC
IR3084 XPHASETM VR 10/11 CONTROL IC

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

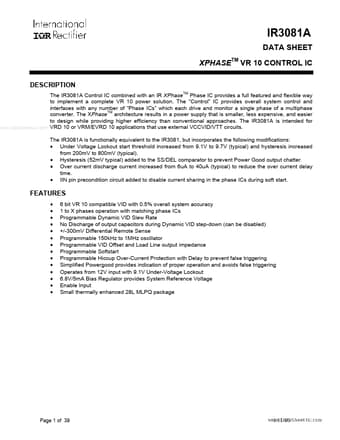

IR3081A DATA SHEET XPHASETM VR 10 CONTROL IC DESCRIPTION The IR3081A Control IC combined with an IR XPhaseTM Phase IC provides a full featured and flexible way to implement a complete VR 10 power solution. The “Control” IC provides overall system control and interfaces with any number of “Phase ICs” which each drive and monitor a single phase of a multiphase converter. The XPhaseTM architecture results in a power supply that is smaller, less expensive, and easier to design while providing higher efficiency than conventional approaches. The IR3081A is intended for VRD 10 or VRM/EVRD 10 applications that use external VCCVID/VTT circuits.
