IR3088 - XPHASE PHASE IC WITH FAULT AND OVERTEMP DETECT

International Rectifier

The IR3088 by International Rectifier is a XPHASE PHASE IC WITH FAULT AND OVERTEMP DETECT. Below is the official datasheet preview.

📥 Download Datasheet

IR3088 XPHASE PHASE IC WITH FAULT AND OVERTEMP DETECT by International Rectifier - Datasheet Preview — Official preview page of the **IR3088** XPHASE PHASE IC WITH FAULT AND OVERTEMP DETECT datasheet (International Rectifier).

Datasheet Details

Part number	IR3088
Manufacturer	International Rectifier
File Size	1.52 MB
Description	XPHASE PHASE IC WITH FAULT AND OVERTEMP DETECT
Datasheet	IR3088_InternationalRectifier.pdf

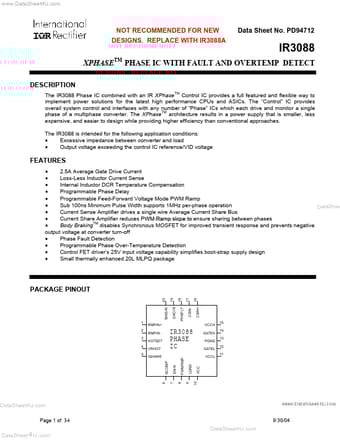

Additional preview pages of the IR3088 datasheet.

IR3088 Product details

Description

The IR3088 Phase IC combined with an IR XPhaseTM Control IC provides a full featured and flexible way to implement power solutions for the latest high performance CPUs and ASICs.

Features

2.5A Average Gate Drive Current.
Loss-Less Inductor Current Sense.
Internal Inductor DCR Temperature Compensation.
Programmable Phase Delay.
Programmable Feed-Forward Voltage Mode PWM Ramp.
Sub 100ns Minimum Pulse Width supports 1MHz per-phase operation DataShee.
Current Sense Amplifier drives a single wire Average Current Share Bus.
Current Share Amplifier reduces PWM Ramp slope to ensure sharing between phases DataSheet4.
