IR3088A - XPHASETM PHASE IC WITH FAULT AND OVERTEMP DETECT

Description

The IR3088A Phase IC combined with an IR XPhaseTM Control IC provides a full featured and flexible way to implement power solutions for the latest high performance CPUs and ASICs.

Features

  • 2.5A Average Gate Drive Current Loss-Less Inductor Current Sense Internal Inductor DCR Temperature Compensation Programmable Phase Delay Programmable Feed-Forward Voltage Mode PWM Ramp Sub 100ns Minimum Pulse Width supports 1MHz per-phase operation DataShee Current Sense Amplifier drives a single wire Average Current Share Bus Current Share Amplifier reduces PWM Ramp.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IR300N-D0 Infrared Emitter CT Micro
IR304C-AXXXX Infrared LED Lamp Xinqiao Optoelectronic
IR311 REFLECTIVE NON FOCUSING SENSOR Fairchild Semiconductor
IR313 4.7mm Round Non-flange Infrared LED Everlight Electronics
IR31BC Uncertified Infrared Single Gas Sensor SGX

Other Datasheets by International Rectifier (now Infineon)

Part Number Description
IR3088APBF XPHASETM PHASE IC
IR3088 XPHASE PHASE IC WITH FAULT AND OVERTEMP DETECT
IR3080 XPHASE VRD10 CONTROLLER
IR3080PBF XPHASETM VRD10 CONTROL IC
IR3081 XPHASE VR 10.0 CONTROL IC

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

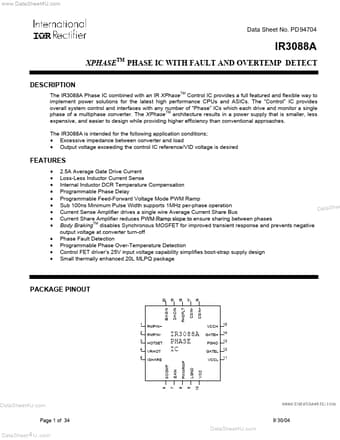

www.DataSheet4U.com Data Sheet No. PD94704 IR3088A XPHASETM PHASE IC WITH FAULT AND OVERTEMP DETECT DESCRIPTION The IR3088A Phase IC combined with an IR XPhaseTM Control IC provides a full featured and flexible way to implement power solutions for the latest high performance CPUs and ASICs. The “Control” IC provides overall system control and interfaces with any number of “Phase” ICs which each drive and monitor a single phase of a multiphase converter. The XPhaseTM architecture results in a power supply that is smaller, less expensive, and easier to design while providing higher efficiency than conventional approaches.
