IR3086A - XPHASETM PHASE IC

International Rectifier

The IR3086A by International Rectifier is a XPHASETM PHASE IC. Below is the official datasheet preview.

📥 Download Datasheet

IR3086A XPHASETM PHASE IC by International Rectifier - Datasheet Preview — Official preview page of the **IR3086A** XPHASETM PHASE IC datasheet (International Rectifier).

Datasheet Details

Part number	IR3086A
Manufacturer	International Rectifier
File Size	1.20 MB
Description	XPHASETM PHASE IC
Datasheet	IR3086A_InternationalRectifier.pdf

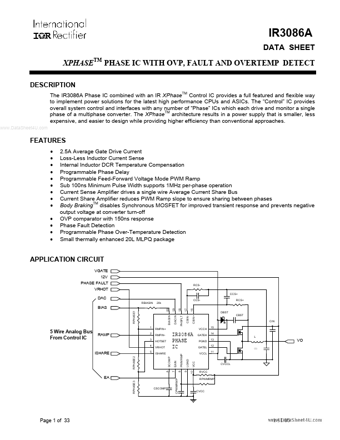

Additional preview pages of the IR3086A datasheet.

IR3086A Product details

Description

The IR3086A Phase IC combined with an IR XPhaseTM Control IC provides a full featured and flexible way to implement power solutions for the latest high performance CPUs and ASICs.

Features

2.5A Average Gate Drive Current Loss-Less Inductor Current Sense Internal Inductor DCR Temperature Compensation Programmable Phase Delay Programmable Feed-Forward Voltage Mode PWM Ramp Sub 100ns Minimum Pulse Width supports 1MHz per-phase operation Current Sense Amplifier drives a single wire Average Current Share Bus Current Share Amplifier reduces PWM Ramp slope to.
