IR3086 - PHASE IC WITH OVP / FAULT AND OVERTEMP DETECT

International Rectifier

The IR3086 by International Rectifier is a PHASE IC WITH OVP / FAULT AND OVERTEMP DETECT. Below is the official datasheet preview.

📥 Download Datasheet

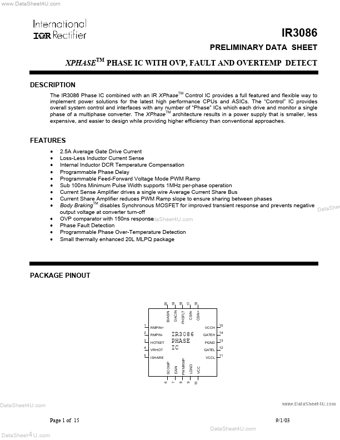

IR3086 PHASE IC WITH OVP / FAULT AND OVERTEMP DETECT by International Rectifier - Datasheet Preview — Official preview page of the **IR3086** PHASE IC WITH OVP / FAULT AND OVERTEMP DETECT datasheet (International Rectifier).

Datasheet Details

Part number	IR3086
Manufacturer	International Rectifier
File Size	650.21 KB
Description	PHASE IC WITH OVP / FAULT AND OVERTEMP DETECT
Datasheet	IR3086_InternationalRectifier.pdf
Additional preview pages of the IR3086 datasheet.

IR3086 Product details

Description

The IR3086 Phase IC combined with an IR XPhaseTM Control IC provides a full featured and flexible way to implement power solutions for the latest high performance CPUs and ASICs.

Features

2.5A Average Gate Drive Current Loss-Less Inductor Current Sense Internal Inductor DCR Temperature Compensation Programmable Phase Delay Programmable Feed-Forward Voltage Mode PWM Ramp Sub 100ns Minimum Pulse Width supports 1MHz per-phase operation Current Sense Amplifier drives a single wire Average Current Share Bus Current Share Amplifier reduces PWM Ramp slope to.
