IPS7081SPBF, IPS7081PBF - INTELLIGENT POWER HIGH SIDE SWITCH

Name: IPS7081SPBF
SKU: IPS7081SPBF-685749

International Rectifier

📥 Download Datasheet

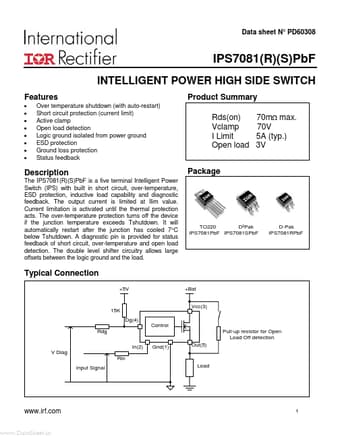

IPS7081SPBF Datasheet Preview — This datasheet PDF includes multiple part numbers: IPS7081SPBF, IPS7081PBF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	IPS7081SPBF, IPS7081PBF
Manufacturer	International Rectifier
File Size	873.51 KB
Description	INTELLIGENT POWER HIGH SIDE SWITCH
Datasheet	IPS7081PBF_InternationalRectifier.pdf
Note	This datasheet PDF includes multiple part numbers: IPS7081SPBF, IPS7081PBF. Please refer to the document for exact specifications by model.

IPS7081SPBF Product details

Description

The IPS7081(R)(S)PbF is a five terminal Intelligent Power Switch (IPS) with built in short circuit, over-temperature, ESD protection, inductive load capability and diagnostic feedback.

Features

Over temperature shutdown (with auto-restart) Short circuit protection (current limit) Active clamp Open load detection Logic ground isolated from power ground ESD protection Ground loss protection Status feedback Product Summary Rds(on) Vclamp I Limit Open load Package 70mΩ max. 70V 5A (typ. ) 3V.
