IPS7071GPBF - PROTECTED HIGH SIDE SWITCH

International Rectifier

The IPS7071GPBF by International Rectifier is a PROTECTED HIGH SIDE SWITCH. Below is the official datasheet preview.

📥 Download Datasheet

IPS7071GPBF PROTECTED HIGH SIDE SWITCH by International Rectifier - Datasheet Preview — Official preview page of the **IPS7071GPBF** PROTECTED HIGH SIDE SWITCH datasheet (International Rectifier).

Datasheet Details

Part number	IPS7071GPBF
Manufacturer	International Rectifier
File Size	387.69 KB
Description	PROTECTED HIGH SIDE SWITCH
Datasheet	IPS7071GPBF_InternationalRectifier.pdf

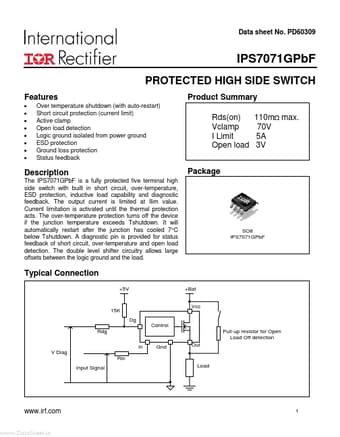

Additional preview pages of the IPS7071GPBF datasheet.

IPS7071GPBF Product details

Description

The IPS7071GPbF is a fully protected five terminal high side switch with built in short circuit, over-temperature, ESD protection, inductive load capability and diagnostic feedback.

Features

Over temperature shutdown (with auto-restart) Short circuit protection (current limit) Active clamp Open load detection Logic ground isolated from power ground ESD protection Ground loss protection Status feedback Product Summary Rds(on) Vclamp I Limit Open load Package 110mΩ max. 70V 5A 3V.
