IPS70R1K4P7S - MOSFET

Infineon

📥 Download Datasheet

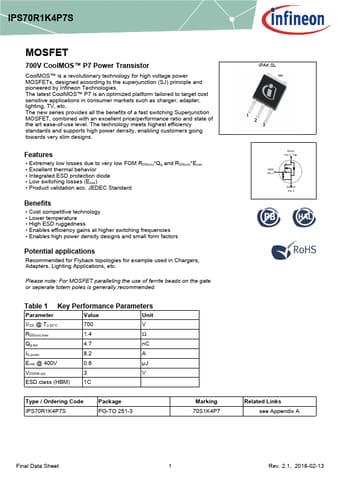

IPS70R1K4P7S Datasheet Preview — Preview of IPS70R1K4P7S PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPS70R1K4P7S
Manufacturer	Infineon
File Size	927.33 KB
Description	MOSFET
Datasheet	IPS70R1K4P7S-Infineon.pdf

IPS70R1K4P7S Product details

Description

. . .

Features

Extremely low losses due to very low FOM RDS(on).
Qg and RDS(on).
Eoss.
Excellent thermal behavior.
Integrated ESD protection diode.
Low switching losses (Eoss).
Product validation acc. JEDEC Standard Benefits.
Cost competitive technology.
Lower temperature.
High ESD ruggedness.
Enables efficiency gains at higher switching frequencies.
Enables high power density designs and small form factors Potenti.
