AUIRG4BC30U-SL, AUIRG4BC30U-S UltraFast Speed IGBT

AUIRG4BC30U-SL Description

AUTOMOTIVE GRADE PD - 96335 INSULATED GATE BIPOLAR TRANSISTOR .

AUIRG4BC30U-SL Features

* UltraFast: Optimized for high operating frequencies 8-40 kHz in hard switching, >200 kHz in resonant mode
* Industry standard D2Pak & TO-262 package
* Lead-Free, RoHS Compliant
* Automotive Qualified
* AUIRG4BC30U-S AUIRG4BC30U-SL UltraFast Speed IGBT C VCES =

AUIRG4BC30U-SL Applications

* SMPS, PFC D2Pak TO-262 AUIRG4BC30U-S AUIRG4BC30U-SL GC E Absolute Maximum Ratings Gate Collector Emitter Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only; and functional operation of the device at these o

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AUIRG4BC30U-SL, AUIRG4BC30U-S. Please refer to the document for exact specifications by model.

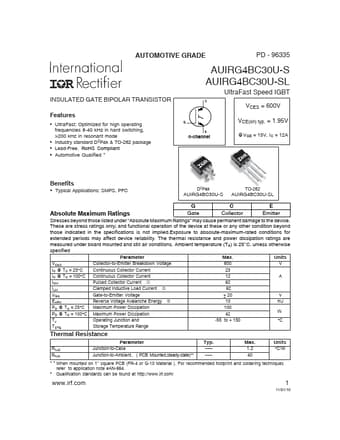

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AUIRG4BC30U-SL, AUIRG4BC30U-S
Manufacturer
International Rectifier
File Size
320.76 KB
Datasheet
AUIRG4BC30U-S-InternationalRectifier.pdf
Description
UltraFast Speed IGBT
Note
This datasheet PDF includes multiple part numbers: AUIRG4BC30U-SL, AUIRG4BC30U-S.
Please refer to the document for exact specifications by model.
