IDTQS33X257 - HIGH-SPEED CMOS QUICKSWITCH 24:12 MUX/DEMUX

Integrated Device

📥 Download Datasheet

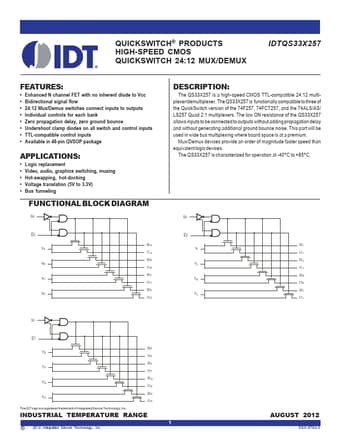

IDTQS33X257 Datasheet Preview — Preview of IDTQS33X257 PDF

Datasheet Details

Part number	IDTQS33X257
Manufacturer	Integrated Device
File Size	213.51 KB
Description	HIGH-SPEED CMOS QUICKSWITCH 24:12 MUX/DEMUX
Datasheet	IDTQS33X257_IntegratedDeviceTechnology.pdf

IDTQS33X257 Product details

Description

Enhanced N channel FET with no inherent diode to Vcc Bidirectional signal flow 24:12 Mux/Demux switches connect inputs to outputs Individual controls for each bank Zero propagation delay, zero ground bounce Undershoot clamp diodes on all switch and control inputs TTL-compatible control inputs Available in 48-pin QVSOP package APPLICATIONS: The QS33X257 is a high-speed CMOS TTL-compatible 24:12 multiplexer/demultiplexer.

Features

IDTQS33X257.
