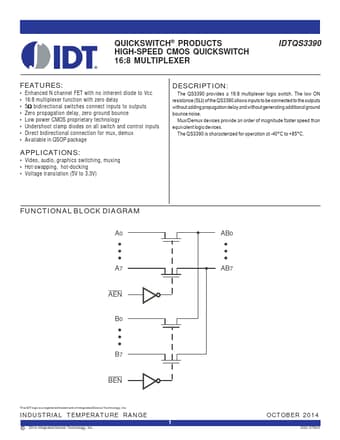

IDTQS3390 - HIGH-SPEED CMOS QUICKSWITCH 16:8 MULTIPLEXER

Integrated Device

Datasheet Details

Part number	IDTQS3390
Manufacturer	Integrated Device
File Size	80.28 KB
Description	HIGH-SPEED CMOS QUICKSWITCH 16:8 MULTIPLEXER
Datasheet	IDTQS3390_IntegratedDeviceTechnology.pdf

The QS3390 provides a 16:8 multiplexer logic switch. Video, audio, graphics switching, muxing Hot-swapping, hot-docking Volta

IDTQS3390 Enhanced N channel FET with no inherent diode to Vcc 16:8 multiplexer function with zero delay 5Ω bidirectional switches connect inputs to outputs Zero propagation delay, zero ground bounce Low power CMOS proprietary technology Undershoot clamp diodes on all switch and control inputs Direct bidirectional connection for mux, demux Available in SOIC and QSOP packages.
