IDT72511 - PARALLEL BIDIRECTIONAL FIFO 512 x 18 & 1024 x 18

Name: IDT72511
SKU: IDT72511-248403

Integrated Device Technology

📥 Download Datasheet

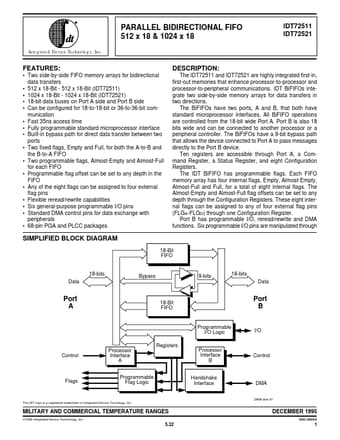

IDT72511 Datasheet Preview — Preview of IDT72511 PDF

Datasheet Details

Part number	IDT72511
Manufacturer	Integrated Device Technology
File Size	434.60 KB
Description	PARALLEL BIDIRECTIONAL FIFO 512 x 18 & 1024 x 18
Datasheet	IDT72511_IntegratedDeviceTechnology.pdf

IDT72511 Product details

Description

The IDT72511 and IDT72521 are highly integrated first-in, first-out memories that enhance processor-to-processor and processor-to-peripheral communications.

Features

Two side-by-side FIFO memory arrays for bidirectional data transfers.
512 x 18-Bit - 512 x 18-Bit (IDT72511).
1024 x 18-Bit - 1024 x 18-Bit (IDT72521).
18-bit data buses on Port A side and Port B side.
Can be configured for 18-to-18-bit or 36-to-36-bit communication.
Fast 35ns access time.
Fully programmable standard microprocessor interface.
Built-in bypass path for direct data transfer between two ports.
Two fix.
