IDT7201 - CMOS ASYNCHRONOUS FIFO

Download the IDT7201 datasheet PDF (IDT7200L included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for cmos asynchronous fifo.

Description

The IDT7200/7201/7202 are dual-port memories that load and empty data on a first-in/first-out basis.

The devices use Full and Empty flags to prevent data overflow and underflow and expansion logic to allow for unlimited expansion capability in both word size and depth.

Features

  • First-In/First-Out dual-port memory.
  • 256 x 9 organization (IDT7200).
  • 512 x 9 organization (IDT7201).
  • 1,024 x 9 organization (IDT7202).
  • Low power consumption.
  • Active: 440mW (max. ).
  • Power-down: 28mW (max. ).
  • Ultra high speed.
  • 12ns access time.
  • Asynchronous and simultaneous read and write.
  • Fully expandable by both word depth and/or bit width.
  • 720x family is pin and functionally compatible from.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IDT7200L-Renesas.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number IDT7201
Manufacturer Renesas
File Size 249.29 KB
Description CMOS ASYNCHRONOUS FIFO
Datasheet download datasheet IDT7201 Datasheet

📁 Similar Datasheet

  • IDT7201LA - CMOS ASYNCHRONOUS FIFO (IDT)
  • IDT7201SA - CMOS Parallel First-in / First-Out FIFO (IDT)
  • IDT7200L - CMOS ASYNCHRONOUS FIFO (IDT)
  • IDT72021 - (IDT720x1) CMOS ASYNCHRONOUS FIFO (Integrated Device Technology)
  • IDT7202LA - CMOS ASYNCHRONOUS FIFO (IDT)
  • IDT7202SA - CMOS Parallel First-in / First-Out FIFO (IDT)
  • IDT7203 - CMOS ASYNCHRONOUS FIFO (Integrated Device Technology)
  • IDT72031 - CMOS ASYNCHRONOUS FIFO (Integrated Device Technology)
  • IDT7204 - (IDT7203 - IDT7208) CMOS ASYNCHRONOUS FIFO (Integrated Device Technology)
  • IDT72041 - (IDT720x1) CMOS ASYNCHRONOUS FIFO (Integrated Device Technology)
Other Datasheets by Renesas

Full PDF Text Transcription

Click to expand full text

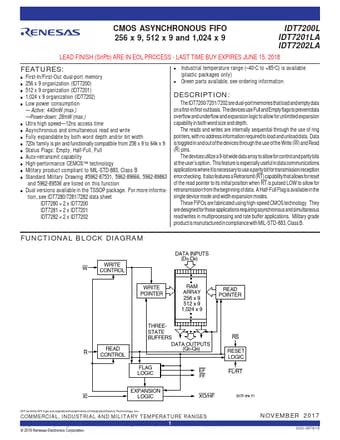

CMOS ASYNCHRONOUS FIFO 256 x 9, 512 x 9 and 1,024 x 9 IDT7200L IDT7201LA IDT7202LA LEAD FINISH (SnPb) ARE IN EOL PROCESS - LAST TIME BUY EXPIRES JUNE 15, 2018 FEATURES: • First-In/First-Out dual-port memory • 256 x 9 organization (IDT7200) • 512 x 9 organization (IDT7201) • 1,024 x 9 organization (IDT7202) • Low power consumption — Active: 440mW (max.) —Power-down: 28mW (max.
