IDT7201LA - CMOS ASYNCHRONOUS FIFO

Download the IDT7201LA datasheet PDF. This datasheet also covers the IDT7200L variant, as both devices belong to the same cmos asynchronous fifo family and are provided as variant models within a single manufacturer datasheet.

Description

The IDT7200/7201/7202 are dual-port memories that load and empty data on a first-in/first-out basis.

The devices use Full and Empty flags to prevent data overflow and underflow and expansion logic to allow for unlimited expansion capability in both word size and depth.

Features

  • First-In/First-Out dual-port memory.
  • 256 x 9 organization (IDT7200).
  • 512 x 9 organization (IDT7201).
  • 1,024 x 9 organization (IDT7202).
  • Low power consumption.
  • Active: 440mW (max. ).
  • Power-down: 28mW (max. ).
  • Ultra high speed.
  • 12ns access time.
  • Asynchronous and simultaneous read and write.
  • Fully expandable by both word depth and/or bit width.
  • 720x family is pin and functionally compatible from.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IDT7200L-Renesas.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number IDT7201LA
Manufacturer Renesas
File Size 249.29 KB
Description CMOS ASYNCHRONOUS FIFO
Datasheet download datasheet IDT7201LA Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IDT7201LA CMOS ASYNCHRONOUS FIFO IDT
IDT7201SA CMOS Parallel First-in / First-Out FIFO IDT
IDT7200L CMOS ASYNCHRONOUS FIFO IDT
IDT72021 (IDT720x1) CMOS ASYNCHRONOUS FIFO Integrated Device Technology
IDT7202LA CMOS ASYNCHRONOUS FIFO IDT

Other Datasheets by Renesas

Part Number Description
IDT7201 CMOS ASYNCHRONOUS FIFO
IDT7200 CMOS ASYNCHRONOUS FIFO
IDT7200L CMOS ASYNCHRONOUS FIFO
IDT7202 CMOS ASYNCHRONOUS FIFO
IDT7202LA CMOS ASYNCHRONOUS FIFO

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

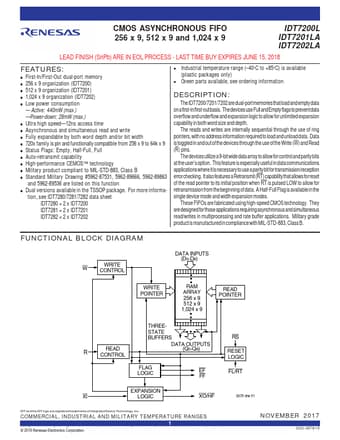

CMOS ASYNCHRONOUS FIFO 256 x 9, 512 x 9 and 1,024 x 9 IDT7200L IDT7201LA IDT7202LA LEAD FINISH (SnPb) ARE IN EOL PROCESS - LAST TIME BUY EXPIRES JUNE 15, 2018 FEATURES: • First-In/First-Out dual-port memory • 256 x 9 organization (IDT7200) • 512 x 9 organization (IDT7201) • 1,024 x 9 organization (IDT7202) • Low power consumption — Active: 440mW (max.) —Power-down: 28mW (max.
