IDT723656, IDT723666 Datasheet - Integrated Device Technology

IDT723656 (IDT7236x6) CMOS TRIPLE BUS SyncFIFOTM

The IDT723656/723666/723676 is a monolithic, high-speed, low-power, CMOS Triple Bus synchronous (clocked) FIFO memory which supports clock frequencies up to 83 MHz and has read access times as fast as 8ns. Two independent 2,048/4,096/8,192 x 36 dual-port SRAM FIFOs on board each chip buffer data bet.

IDT723656 Features

* Memory storage capacity: IDT723656

* 2,048 x 36 x 2 IDT723666

* 4,096 x 36 x 2 IDT723676

* 8,192 x 36 x 2 Clock frequencies up to 83 MHz (8ns access time) Two independent FIFOs buffer data between one bidirection

IDT723666_IntegratedDeviceTechnology.pdf

This datasheet PDF includes multiple part numbers: IDT723656, IDT723666. Please refer to the document for exact specifications by model.

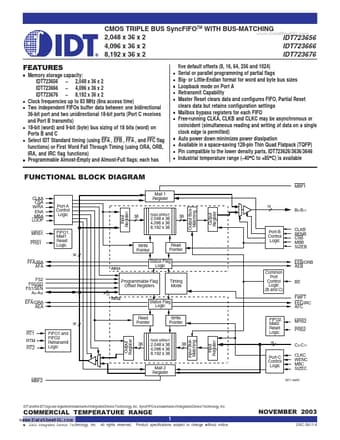

IDT723656 Datasheet Preview Page 2 IDT723656 Datasheet Preview Page 3

Datasheet Details

Part number:

IDT723656, IDT723666

Manufacturer:

Integrated Device Technology

File Size:

432.86 KB

Description:

(idt7236x6) cmos triple bus syncfifotm.

Note:

This datasheet PDF includes multiple part numbers: IDT723656, IDT723666.
Please refer to the document for exact specifications by model.
