IDT723664, IDT723654 - (IDT7236x4) CMOS SyncBiFIFO

Name: IDT723664
SKU: IDT723664-561501

IDT

📥 Download Datasheet

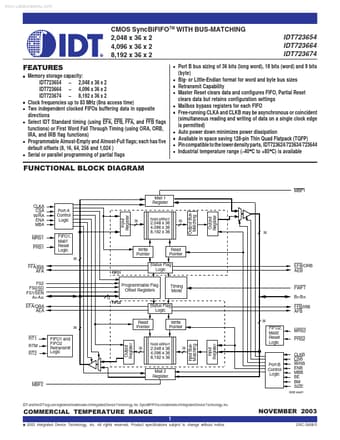

IDT723664 Datasheet Preview — This datasheet PDF includes multiple part numbers: IDT723664, IDT723654. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	IDT723664, IDT723654
Manufacturer	IDT
File Size	421.33 KB
Description	(IDT7236x4) CMOS SyncBiFIFO
Datasheet	IDT723654_IDT.pdf
Note	This datasheet PDF includes multiple part numbers: IDT723664, IDT723654. Please refer to the document for exact specifications by model.

IDT723664 Product details

Description

The IDT723654/723664/723674 is a monolithic, high-speed, low-power, CMOS bidirectional synchronous (clocked) FIFO memory which supports clock frequencies up to 83 MHz and has read access times as fast as 8ns.

Features

Memory storage capacity: IDT723654.
2,048 x 36 x 2 IDT723664.
4,096 x 36 x 2 IDT723674.
8,192 x 36 x 2 Clock frequencies up to 83 MHz (8ns access time) Two independent clocked FIFOs buffering data in opposite directions Select IDT Standard timing (using EFA, EFB, FFA, and FFB flags functions) or First Word Fall Through Timing (using ORA, ORB, IRA,.
