IDT723666 - (IDT7236x6) CMOS TRIPLE BUS SyncFIFOTM

Name: IDT723666
SKU: IDT723666-664565

Integrated Device Technology

📥 Download Datasheet

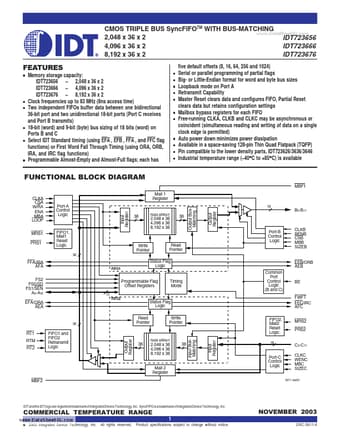

IDT723666 Datasheet Preview — Preview of IDT723666 PDF

Datasheet Details

Part number	IDT723666
Manufacturer	Integrated Device Technology
File Size	432.86 KB
Description	(IDT7236x6) CMOS TRIPLE BUS SyncFIFOTM
Datasheet	IDT723666_IntegratedDeviceTechnology.pdf

IDT723666 Product details

Description

The IDT723656/723666/723676 is a monolithic, high-speed, low-power, CMOS Triple Bus synchronous (clocked) FIFO memory which supports clock frequencies up to 83 MHz and has read access times as fast as 8ns.

Features

Memory storage capacity: IDT723656.
2,048 x 36 x 2 IDT723666.
4,096 x 36 x 2 IDT723676.
8,192 x 36 x 2 Clock frequencies up to 83 MHz (8ns access time) Two independent FIFOs buffer data between one bidirectional 36-bit port and two unidirectional 18-bit ports (Port C receives and Port B transmits) 18-bit (word) and 9-bit (byte) bus sizing of 18 bits (word) on Ports B and C Select IDT Standard timing (using.
