ICS843004-125 FemtoClock Crystal-to-3.3V LVPECL Frequency Synthesizer

ICS843004-125 Description

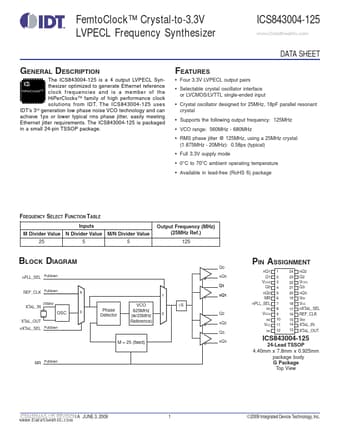

FemtoClock™ Crystal-to-3.3V LVPECL Frequency Synthesizer ICS843004-125 ADVANCE INFORMATION www.DataSheet4U.com DATA SHEET GENERAL .
The ICS843004-125 is a 4 output LVPECL SynIC S thesizer optimized to generate Ethernet reference HiPerClockS™ clock frequencies and is a member of the.

ICS843004-125 Features

* Four 3.3V LVPECL output pairs
* Selectable crystal oscillator interface or LVCMOS/LVTTL single-ended input
* Crystal oscillator designed for 25MHz, 18pF parallel resonant crystal
* Supports the following output frequency: 125MHz
* VCO range: 560MHz - 680MHz

ICS843004-125 Applications

* not requiring the use of the crystal oscillator input, both XTAL_IN and XTAL_OUT can be left floating. Though not required, but for additional protection, a 1kW resistor can be tied from XTAL_IN to ground. REF_CLK INPUT For applications not requiring the use of the reference clock, it can be left fl
